TECHNICAL SPECIFICATIONS
| Description | Value |
|---|---|

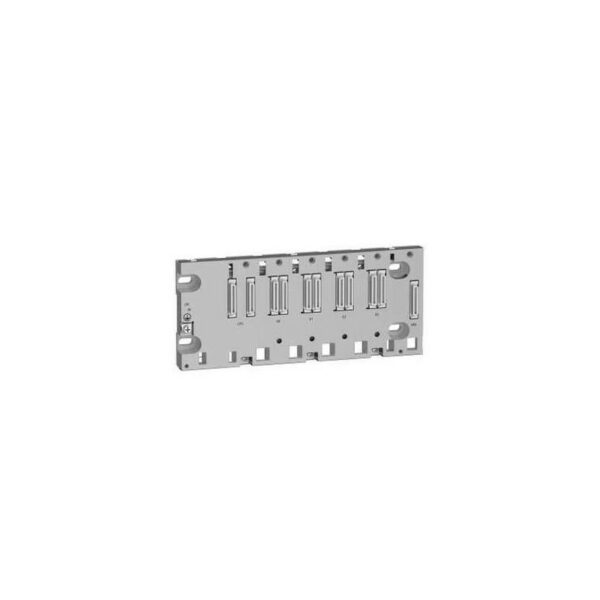

| Product range | Modicon X80 |
| Accessory / separate part type | Rack |
| Number of slots | 4 (X bus + Ethernet) |
| Product compatibility |
I/O module BMX processor Application-specific module BMXCPS power supply BME processor |
| Power consumption |
162 mW at 3.3 V DC 2.8 W at 24 V DC |
| Electrical connection | 1 connector (XBE) for extension module |
| Mounting mode |
By 4 screws (Ø 4.32 to 6.35 mm), panel mounting By 4 M6 screws, plate mounting By clips, symmetrical 35 mm DIN rail mounting |
| Current consumption |
49 mA at 3.3 V DC 118 mA at 24 V DC |
| MTBF reliability | 1,588,025 h |
| Net weight | 0.705 kg |
| Protection rating | IP20 |
| Operating temperature | 0 to 60 °C |
| Relative humidity | 5 to 95% without condensation |
| European directives |
2014/35/EU (Low Voltage Directive) 2014/30/EU (Electromagnetic Compatibility) |
| Packaging 1 | PCE – 1 unit – 6.6 × 15.0 × 32.5 cm – 702 g |
| Packaging 2 | S04 – 13 units – 30 × 40 × 60 cm – 10.086 kg |
| Contractual warranty | 18 months |
