BMEXBP0800 – Modicon M580 – 8-Slot Rack – Ethernet + X Bus

The BMEXBP0800 is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PACs).

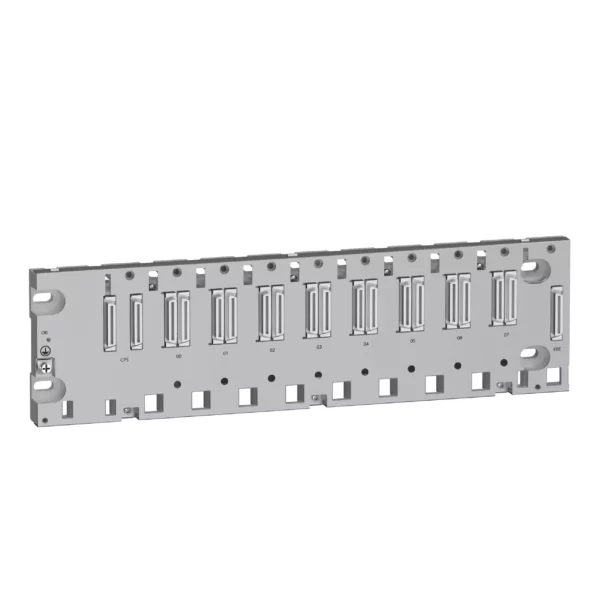

This Ethernet backplane rack is an accessory for Programmable Automation Controllers. The 8-slot dual Ethernet and X Bus rack provides 8 slots, each equipped with Ethernet and X Bus connectors, allowing the installation of mixed modules.

This robust, high-quality product is based on the latest innovative technologies.

The rack has a current consumption of:

164 mA at 24 V DC
64 mA at 3.3 V DC

It is supplied with 1 XBE connector extension module for electrical connection.

The rack offers an MTBF of 1,700,000 hours and has an IP20 protection rating. It weighs approximately 1.06 kg.

It is suitable for medium- to large-scale process applications.

The product complies with the following standards:

EN 61131-2
EN 61000-6-4
EN 61000-6-2
EN 61010-2-201

The BMEXBP0800 is compatible with:

Application-specific modules
I/O modules
BMXCPS power supply modules
BMX processors
BME processors

As part of the Modicon X80 common platform, the BMEXBP0800 helps reduce maintenance and training costs by providing a standardized architecture and allowing a common training approach across different Programmable Automation Controllers (PACs).

Technical data sheet
User manual

TECHNICAL SPECIFICATIONS

Description	Value
Product range	Modicon X80
Accessory / separate part type	Rack
Number of slots	8 (X bus + Ethernet)
Product compatibility	I/O module BMX processor Application-specific module BMXCPS power supply BME processor
Power consumption	211 mW at 3.3 V DC 3.9 W at 24 V DC
Electrical connection	1 connector (XBE) extension module
Mounting method	By 4 screws (Ø 4.32 to 6.35 mm), panel mounting By 4 M6 screws, mounting on plate By clips, mounting on 35 mm symmetrical DIN rail
Current consumption	64 mA at 3.3 V DC 164 mA at 24 V DC
MTBF reliability	1,297,516 h
Net weight	1.06 kg
Degree of protection	IP20
Operating temperature	0 to 60 °C
Relative humidity	5 to 95 % without condensation
European directives	2014/35/EU (Low Voltage Directive) 2014/30/EU (Electromagnetic Compatibility)
Packaging 1	PCE – 1 unit – 6.8 × 15.5 × 46.0 cm – 1.032 kg
Packaging 2	S04 – 9 units – 30 × 40 × 60 cm – 10.200 kg
Packaging 3	P06 – 36 units – 75 × 60 × 80 cm – 53.000 kg
Contractual warranty	18 months
