TECHNICAL SPECIFICATIONS
| Description | Value |
|---|---|

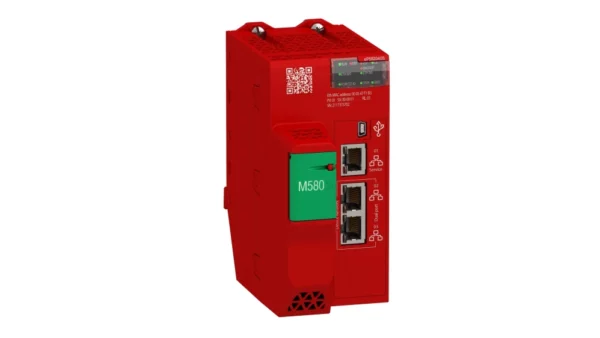

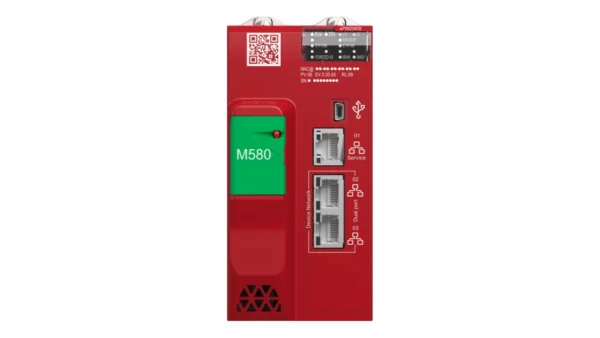

| Product range | Modicon M580 |
| Product or component type | Processor module |
| Insulation technology | Conformal coating |
| Number of racks | 8 |
| Local I/O processor capacity (discrete) | 4,096 I/O |
| Local I/O processor capacity (analog) | 1,024 I/O |
| Number of application-specific channels (local rack) | 144 |
| Application-specific I/O |
Counter Motion control SSI encoder High-precision time stamping Serial link HART Diagnostics Safety control Process control Control channels Programmable loops |
| Integrated connection type |
1 Ethernet TCP/IP for service port 2 Ethernet TCP/IP for device network USB type mini B |
| Number of remote I/O stations | 16 (2 racks per remote rack) |
| Number of distributed devices | 64 |
| Number of CIP safety I/O devices | 64 |
| Processor communication module capacity |
16 AS-Interface modules 4 Ethernet communication modules |
| Communication service | RIO scanner, DIO scanner |
| Memory description |
Expandable flash: 4 GB for data storage System RAM: 10 KB Process program RAM: 16 MB Process data RAM: 2,048 KB Safety program RAM: 4 MB Safety data RAM: 1,024 KB |
| Application structure |
2 auxiliary tasks 2 periodic fixed tasks 1 master cyclic/periodic task 128 event tasks |
| Cybersecurity |
Achilles certified DoS prevention IPSec SNMP logging Syslog protocol support Audit trail Integrated firewall Firmware signature Password protection Communication port hardening Security log |
| Number of instructions per ms |
30 Kinst/ms (65% Boolean / 35% fixed-point) 40 Kinst/ms (100% Boolean) |
| Power consumption | 295 mA at 24 V DC |
| MTBF reliability | 775,000 h |
| Marking | CE |
| Vibration resistance | 3 gn |
| Mechanical shock resistance | 15 gn |
| Operating ambient air temperature | -25…60 °C |
| Ambient temperature for storage | -40…85 °C |
| Operating altitude | 0…2000 m / 2000…4000 m with derating factor |
| Relative humidity | 5…95% at 55 °C without condensation |
| IP protection rating | IP20 |
| European Regulation |
2014/30/EU – electromagnetic compatibility 2006/42/EC – machinery 2014/34/EU – ATEX directive |
| Product certifications |
CE UL CSA RCM EAC Marine ATEX zone 2/22 IECEx zone 2/22 TÜV |
| Standards |
IEC 61131-2 IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No. 61010-2-201 IACS E10 EN/IEC 61000-6-5, type 1 and type 2 interface EN/IEC 61850-3, location G IEC 60079-0 |
| Environmental characteristics |
Hazardous area Class I Division 2 Resistant to Class Gx gas according to ISA S71.04 Resistant to Class 3C4 gas according to IEC 60721-3-3 Resistant to Class 3S4 dust according to IEC 60721-3-3 Resistant to Class 3S4 sand according to IEC 60721-3-3 Resistant to level 2 salt according to IEC 68252 Resistant to Class 3B2 mold growth according to IEC 60721-3-3 Resistant to Class 3B2 fungal spores according to IEC 60721-3-3 |
| Protective treatment | Conformal coating |
| Safety level |
SIL 3 according to IEC 61508 SIL 3 according to IEC 61511 SILCL 3 according to IEC 62061 SILCL 3 according to ISO 13849-1 category 4 SIL 4 according to EN 50126 SIL 4 according to EN 50128 SIL 4 according to EN 50129 |
| Power supply | Internal power supply via the rack |
| LED status |
1 LED (green) processor running (RUN) 1 LED (red) processor or system fault (ERR) 1 LED (red) I/O module error (I/O) 1 LED (green) Download in progress (DL) 1 LED (red) memory card or CPU flash failure (BACKUP) 1 LED (green/red) ETH MS (Ethernet port configuration status) 1 LED (green/red) ETH NS (Ethernet network status) 1 LED (green) processor in safety mode (SRUN) 1 LED (green) processor in maintenance mode (SMOD) 1 LED (red) I/O values forced by the user (FORCED IO) |
| Net weight | 0.849 kg |
| Package 1 | PCE – 1 unit – 8.900 × 17.800 × 25.200 cm – 880 g |
| Package 2 | S03 – 6 units – 30.000 × 30.000 × 40.000 cm – 5.758 kg |
| Contractual warranty | 18 months |
