BMEH582040K – Modicon M580 – Hot Standby Kit – consisting of 2 × BMEH582040 + 2 × 490NAC0100

BMEH582040K – Modicon M580 – Hot Standby Kit – consisting of 2 × BMEH582040 + 2 × 490NAC0100

This product is part of the Modicon M580 range, a family of Programmable Automation Controllers (PACs) and Safety Programmable Logic Controllers (PLCs) with integrated Ethernet.

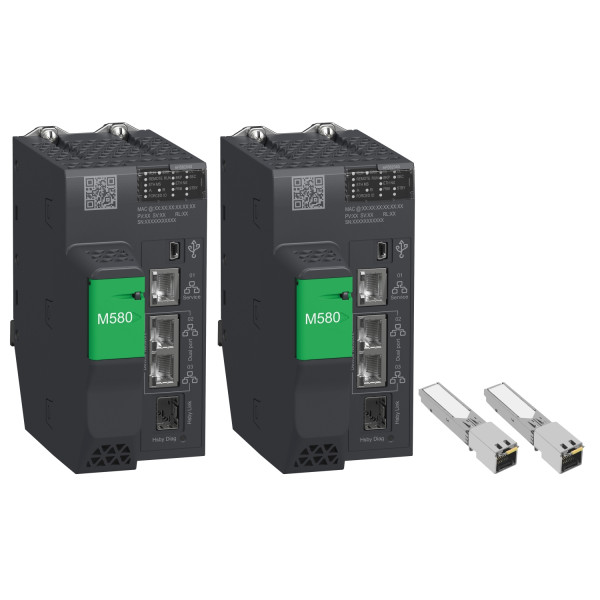

This Hot Standby (HSBY) backup kit is an accessory kit for Programmable Automation Controllers (PACs) and Safety Programmable Logic Controllers (PLCs). It consists of 2 BMEH582040 processor modules and 2 490NAC0100 SFP transceivers.

The product has an IP20 protection rating and weighs 1.698 kg.

It is suitable for medium- to large-scale process applications.

This product is certified CE, CSA, RCM, UL, Merchant Navy, and EAC.

It complies with EN 61131-2, EN 61000-6-4, EN 61000-6-2, and EN 61010-2-201 standards.

It helps increase operational profitability through improved access to data.

SKU: 1205 Category:
Technical datasheet
User manual

TECHNICAL SPECIFICATIONS

Description Value
Product range Modicon M580
Marking CE
Vibration resistance 3 gn
Mechanical shock resistance 30 gn
Operating temperature -25 to 60 °C
Storage temperature -40 to 85 °C
Operating altitude 0 to 2000 m
2000 to 4000 m with derating factor
Relative humidity 5 to 95 % at 55 °C without condensation
Degree of protection IP20
European directives 2014/35/EU (Low Voltage)
2014/30/EU (Electromagnetic Compatibility)
Product certifications CE
UL
CSA
RCM
EAC
Merchant Marine
Standards IEC 61131-2
IEC 61010-2-201
UL 61010-2-201
CSA C22.2 No 61010-2-201
IACS E10
EN/IEC 61000-6-5 (interface type 1 and type 2)
EN/IEC 61850-3 (location G)
Hazardous area Class I Division 2
Net weight 1.698 kg
Packaging 1 PCE – 1 unit – 15.0 × 30.0 × 40.0 cm – 2.230 kg
Contractual warranty 18 months
